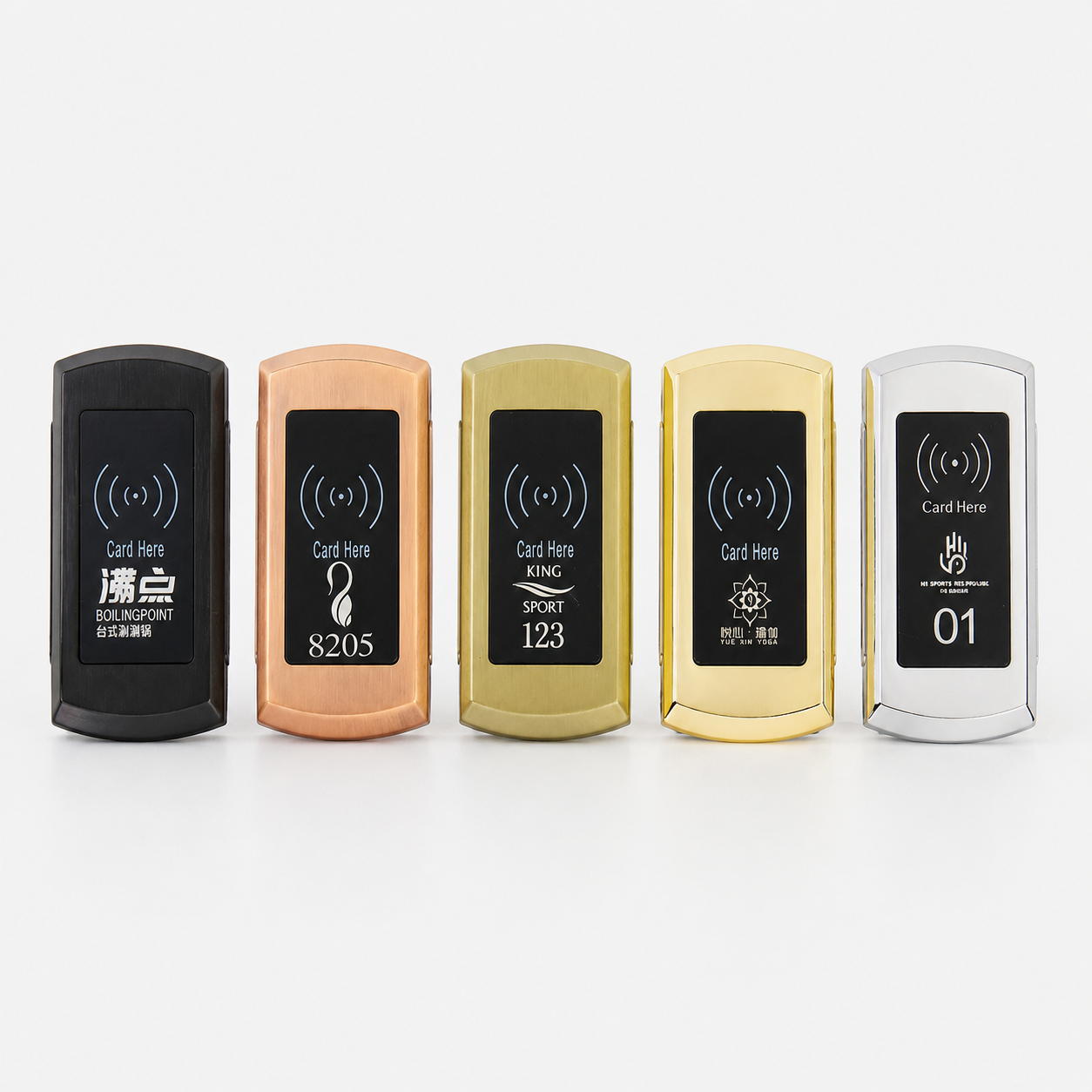

About YonAnn RFID Cabinet Lock

Unique Design

Unique design with classical appearance, all design for handle which no need install handle again can easy grip to pull the locker .

Level Management

Standalone type issue card from the lock reader directly . From master card issue room card and management card , three level

management of the lock make the lock more suitable and convent for the application place .

 Two Model of  The Lock

Single card unlock the door and double card two model to unlock door . single card model status , the available card can unlock the

door directly , double card unlock model need available card and service card work together to unlock the door

 Choosable Model for Mobile Cabinet

In these model type , the lock in open status will can’t lock automatically , it keep in unlock status waiting for the next guest card use his

room card to lock the cabinet , when the cabinet locked by this card key , it only unlock by this key , other keys can’t open the cabinet .

after opened , it will keep in unlock status waiting for next guest use .

 Master Card For Emergency Status Use

The master card except can unlock all locks and for issue the room card key , it can use in emergency status in case the cabinet lock work

power off or other emergency happen .

 Music Notice in Different Operate

Read the right card key to unlock , it will have music sound to notice , read the wrong card key will have two sound beep“di””di”.

Low Battery Warn

The lock in low voltage ,the lock will have beep sound during read card key unlock the door to warn need to change new battery .

Extra Power Supply Box Available

Extra power supply box available ,in case power off or some damage cause the locker can’t open , use this extra power for outer

power supply .

 Automatically Lock

When the lock closed , it will automatically locked within a few seconds .

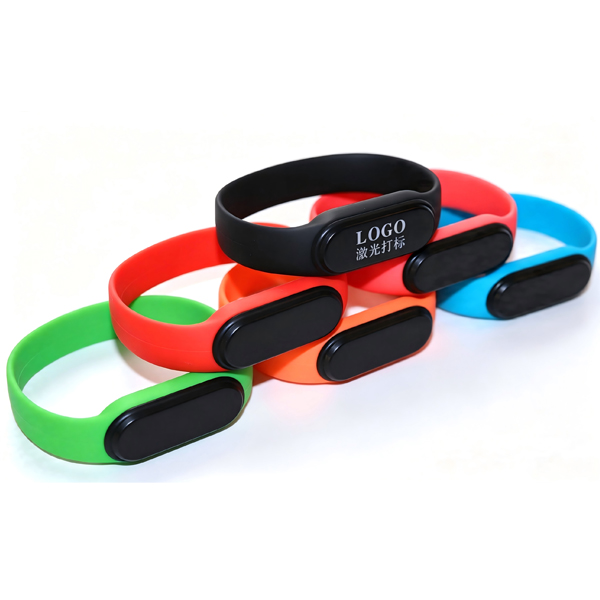

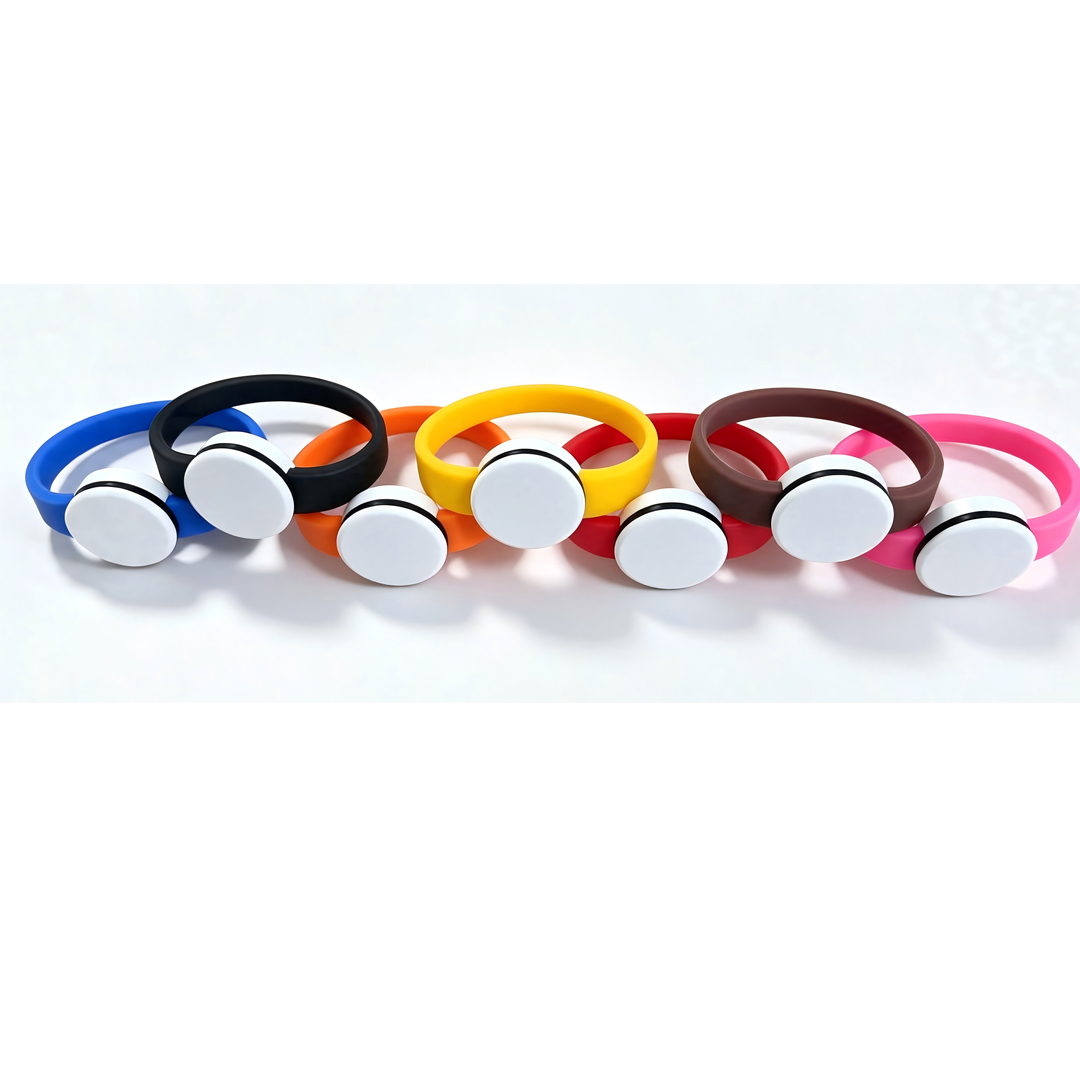

One complete set RFID cabinet lock consist of front panel lock , lock body , wristband key ( we offer 1 free with each lock) and screws .

304 Stainless Steel Material Lock Latch More dural and Long Lifetime
Emgerency Unlock Place in Case the Lock can’t Unlock Use .
Long Liftetime Use , 4 pcs AA alkaline battery can more than 365 days

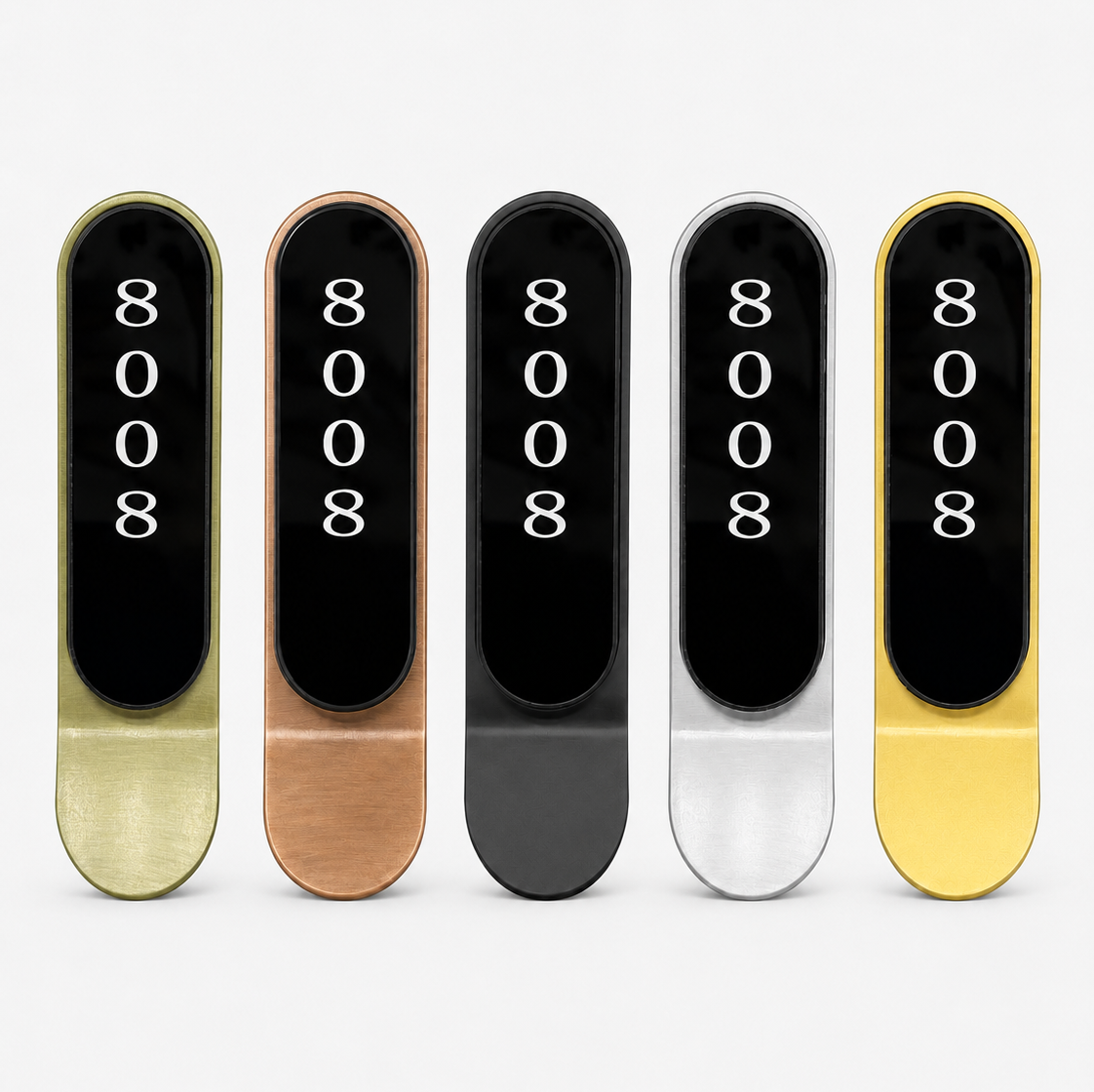

2 Type Lock Body Choose

Emgerency Power Supply

When we buy RFID cabinet locks, the manufacturer always configures a management card for us to manage the batch of locks we purchased, but we don’t know how this type of card is generated. What if the management card allocated by the manufacturer is lost ? It might be more troublesome if the manufacturer asks for it. If you can set it yourself, it will be much more convenient. What if the guest card is copied when it is allocated to other users? With these questions, YonAnn RFID cabinet lock engineers will analyze the above problems of ID RFID cabinet locks for everyone.

• The RFID cabinet lock management card can be configured by ourselves, in case we lose it, we can also match it!

When the RFID cabinet lock leaves the factory, the amount of information in it is in the initial state. At this time, if you take a blank management card, the card that is sensed for the first time is the management card, and then use these cards to sense those that are still initialized. For RFID cabinet locks, this card is the management card for this batch of locks after the end, and these cards can open all locks, and can also achieve management functions such as configuring guest cards.

• Don’t be afraid of losing the management card, you can configure it yourself.

As mentioned above, the RFID cabinet lock management card is configured by the manufacturer when the lock is initialized, so as long as we restore the lock to the initial state, then we can also set it by ourselves. There is a built-in button on the back of the RFID cabinet lock body, you can use a small needle to penetrate it and press it hard for 5 seconds to restore the initial state. Since the management card manages the entire batch of locks, at this time, you have to initialize all the sauna cabinet locks, and then configure the entire batch, so that you can manage the entire batch of locks.

• Don’t be afraid that the guest card is copied, the user can log off the lost card or the copied card by himself.

There are generally fewer cases of being copied, and the possibility of loss is greater. Although the ID card can be copied theoretically, if it is lost, you can use the management card to help it open the cabinet door. If it is copied, you can Use the management card and then take a blank card to reconfigure the door opening card of the cabinet. The old door opening card will be canceled and replaced. The new card can open the cabinet door normally. There is also a safer management method, sauna cabinet lock. You can set the dual card opening method, that is, one is a guest card and the other is a waiter card. When the guest opens the door to pick up the shipment, the waiter needs to provide another waiter card. The two cards can be opened without a sequence of induction. The cabinet door can be taken care of by people, and it is safer in management. This mode requires manual care, which may cost and time consumption.

Traditional RFID cabinet locks are actually mechanical locks, but in the information age, the RFID cabinet locks we often talk about are already smart electronic cabinet locks. The first generation of electronic sauna cabinet locks has been applied in 2000. Although the technical level is not perfect, it was the first application of its real electronic technology in cabinet locks at that time. At present, there are mainly ID RFID cabinet locks, T5577 RFID cabinet locks, IC RFID cabinet locks and password RFID cabinet locks, fingerprint RFID cabinet locks and Bluetooth RFID cabinet locks. ID cabinet locks are used in small and medium-sized occasions.

Logically speaking, the locks that appear later will definitely have more technical advantages than the previous products, so why do ID sauna cabinet locks still account for most of them? There are several decisive factors in this, one of which is ID. RFID cabinet locks appeared earlier, with higher market retention, and people have a higher utilization rate. They have a deeper understanding of them, and they are also in line with actual needs. The price is quite cheap, so they are quite popular. IC locks and T5577 , More use with card issuance software, some are compatible with RFID cabinet locks, password cabinet locks and fingerprint Bluetooth cabinet locks to better suit their card management needs Wearing a bracelet on your hand, you only need to remember the password or fingerprint you set. After you use it once, the password/fingerprint will naturally become invalid, so it is more simplified, allowing users to go to fitness or swimming more easily and freely, without fear of losing or obstructing Own activities. Password cabinet locks/fingerprints and Bluetooth cabinet locks are more expensive, and the actual choice depends on user needs.

Some people will say whether the ID RFID cabinet lock will be copied or cracked. In fact, don’t worry too much. All activities have relevant security monitoring. There are also security personnel on site. It is difficult to crack it in a short time. If you lose it, you are not afraid of being picked up by others. As long as you notify the manager, the manager can use the management card to reconfigure a new card to open the door. The old card immediately loses its effectiveness. For small and medium-sized events, this It’s too convenient.

In the future, ID cabinet locks will be gradually replaced by password cabinet locks, but it will take a long time. With the advancement of people’s quality of life and intelligent technology, the technical improvement of ID RFID cabinet locks may also achieve more security, simple and intelligent developing.

• Drill hole

• Install Front Panel and Lock Body

Program Wristband Key and Test

Installation Tips

1. When installing, it is necessary to drill hole according to the opening diagram of the cabinet door provided by us (so that in the case of a lock failure, the cabinet door can be opened without damaging the cabinet door using the emergency door opening program)

2.When installing the lock body, pay attention to the emergency door opening hole match with the lock body drilled hole (that is, from the drawer drilled hole can see the lock body emergency hole .

3.After installation, do not lock the cabinet door first. You need to install the battery on the lock. Use the mastercard to program open door keys and test if the drawer can unlock and lock normal .

4.The mastercard can reset the lock , don’t use master card unlock in case emergency status . The programed key card can be delete if read master key at wrong way , this will makes the card key can’t work . The master card use when need to reset the lock or emergency status use .

Custom Made Door Plate

A.How to install?
YonAnn cabinet lock installation is fairly simple; moreover, we offer telephone guidance and installation guide to alleviate client concerns about installation. We have installation video guidance available at the same time. If you require an installation video, please contact customer service.

B: Can the RFID cabinet lock be installed on any cabinet door?
It is suitable for use on small cabinets, iron cabinets, drawers, plastic cabinets, and other cabinets with external doors. You can request from the cabinet manufacturer to adjust and open holes for you based on the size of the locks. Furthermore, the cabinet manufacturer has complete opening equipment and tools for a very standard and simple installation. It is recommended that locks for cabinets be purchased first.

C: What if this lock doesn’t have electricity?
We used Four No. 5 alkaline batteries to power the sauna cabinet lock. When there is inadequate power, the lock will send a low power alert to remind the client that the battery should be supplanted. In case of a blackout, you can utilize the outer power box to briefly supply power and turn it on.

D: How is the warranty?
Upon installation of this item, non-qualified new lock accessories are presented for two-year has warranty and private support. Assuming you have any issues while utilizing the item, if it’s not too much trouble, contact our client assistance to report them.

In fact, radio frequency technology is also called radio frequency identification technology, that is, non-contact sensing technology. For example, ID, T57, M1 and other induction cards in our daily use are all smart cards that use radio frequency technology, and sauna cabinet card locks also use radio frequency technology. , To a certain extent, improve the user’s flexibility in use. Compared with contact sauna cabinet locks such as TM, the sauna cabinet lock using RF is more advanced and more convenient to use.

ID, T57, and M1 are a further upgrade to the TM sauna smart door lock. Now the TM card lock has basically withdrawn from the market and is replaced by the radio frequency non-contact RFID cabinet lock, because the TM method sensor card needs to correspond to the lock contacts are greatly affected by the external environment, such as: humid environment, dust, etc., and the contact sensing area is easy to rust. This is also a place that is vulnerable to violence. After the sauna cabinet card lock uses radio frequency technology, it can solve the contact shortcomings of the lock have become an important sauna cabinet lock for future development.

The sauna cabinet swipe card door lock technology has been in development and upgrading. The ID RFID cabinet lock we mentioned earlier, and T57 card cabinet locks are all products of a development process, and are inevitable locks for the development of radio frequency technology. Radio frequency technology has become a short-distance information exchange. As a medium of communication, more and more home equipment will be based on the WIFI communication platform, with the help of the advantages of radio frequency short-distance transmission technology to realize intelligence. Smart homes have begun to rise, and the sauna cabinet swiping smart lock is only a member of the glacier in smart life.

YonAnn has been closely following the trend of modern life in the research and development of RFID cabinet locks. It implements strict monitoring in both technical application and hardware quality management to ensure that every sauna cabinet credit card lock sold can be used normally to ensure that users Can get a smooth and good use experience.

A small RFID cabinet lock looks simple, but there are big things in it, especially for the first time users who buy this kind of cabinet lock, how to do it when faced with various prices on the market and a variety of quality grades. Reasonable judgment and procurement is another kind of knowledge! So before making a decision, we need to consider the following aspects!

• Determine the type of RFID cabinet lock

This is a factor that we need to prioritize. RFID cabinet locks include ID, all-in-one card, and software. For small-scale applications, ID RFID cabinet locks are enough. If you need to use it with other original all-in-one card systems, then You will continue to need one-card type cabinet locks. If larger users want to use software to issue cards, they can use application cabinet locks with T5577 cards. Similar to hotel locks, T5577 cards can be used. All card issuance is centralized. Write a card at the front desk, and ID is a fixed corresponding cabinet door, so there are many weaknesses in its use, but there are many weaknesses in management. In short, ID sauna cabinet locks can be used for a scale of less than 100 sets, and software can be considered for more than 200 sets. Electronic locks or all-in-one cards. Of course, the latter two types are more expensive.

• After-sale technical quality.

This is especially important for large-scale users, no matter in troubleshooting, use problems, installation support, manufacturers need to provide corresponding support.

• Brand reputation influence.

A product with a good reputation indicates that it has been tested by a large number of users and has been widely recognized during use. We cannot guarantee that users can get satisfactory results, but if it can reach more than 80%, you can give priority to buying this Products.

From the current electronic sauna cabinet lock, the sauna cabinet lock is still an induction card type, which only exists as a single function of the induction card to open the door, such as: ID RFID cabinet lock, M1 RFID cabinet lock or called one-card sauna cabinet lock. It has been developed for more than ten years. Already has a considerable number of users, it should be said that the traditional electronic sauna cabinet lock market is close to saturation. On the contrary, due to the needs of artificial intelligence, big data and the improvement of people’s quality of life, electronic RFID cabinet lock applications require more diversified functions. Only by applying high-quality products can it meet the needs of current and future development.

So how do you think technological innovation can further expand the sauna cabinet lock market? Here are some ideas recommended by some netizens.

1. The product system needs to be customized.

Because no matter which industry, its competitiveness is quite large, each application subject tends to make great efforts on the level of service quality in order to improve its own competitive strength. Therefore, the functional application of these electronic RFID cabinet locks needs to be compared with the existing ones. For example, the automatic deduction of sauna cabinet locks, and the self-distribution of lockers. For users who use face recognition uniformly, the electronic RFID cabinet lock also needs the face to recognize its use authority, and its operating system program It is necessary to customize the development system according to the user’s needs to make it more personalized, even more creative, and to improve user satisfaction. Therefore, sauna cabinet lock manufacturers need to vigorously carry out technological innovation, focusing on the development of customized systems, but also need design capabilities. For products that meet different needs of users, only technological innovation can enable electronic sauna cabinet lock manufacturers to go further.

2. Modulationis more economical and benefits are better.

This is an optimization of the above customization. Modularization can not only greatly reduce the cost of customized production, but also has more diversified functions. The key is to realize your needs faster, such as: the need to add automatic charging modules, fingerprint modules , WIFI module, face recognition module, password module, etc., can be installed on what functions are needed, of course, the more functional modules, the higher the cost, and the purchase cost will naturally increase.

After technological innovation, the function of the future electronic RFID cabinet lock is no longer solely for opening the door, and more realization of the Internet of Things, big data application functions, for all users who build smart apartments, smart resorts, and smart operations It is part of a smart life.

RFID cabinet lock: all the smart cabinet locks you want are gathered here, you can come in and take a look.

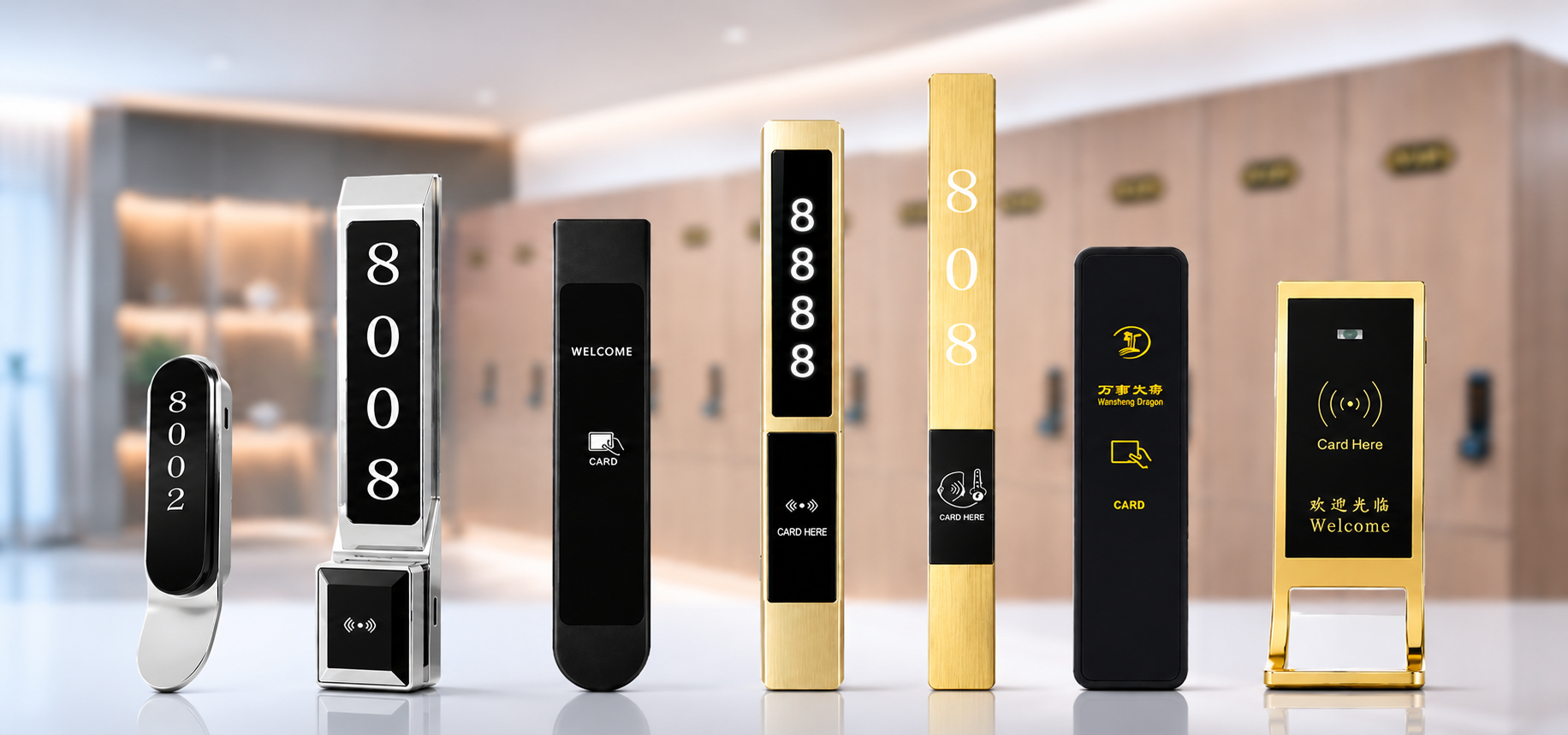

There are too many types of RFID cabinet locks. The smart cabinet locks with the same appearance and different functions are beyond the reach of many novices. Some people say that electronic locks and other electronic products are “deep” in the commodity industry. It is difficult to buy qualified and regular products, but for our manufacturers, there is nothing difficult to buy locks at a fair and reasonable price, because you don’t know brand products, and if you want to buy electronic cabinet locks that give you peace of mind, you can try to contact us, The smart cabinet lock you want is here! We provide you with real-time lock explanation, quotation and other related technical support.

An RFID cabinet lock is an electronic lock that opens after reading an authorized RFID card, wristband or key fob. The lock verifies the credential and controls the locking mechanism electronically, so users do not need a mechanical key. RFID cabinet locks are widely used for gym, spa, sauna, swimming-pool, school, office and staff lockers. Most standalone models operate locally and do not require Wi-Fi.

A 125 kHz RFID locker lock normally works with low-frequency credentials such as EM4100, TK4100 or T5577 cards and wristbands. It is economical and suitable for simple locker projects.

A 13.56 MHz lock commonly supports MIFARE credentials and offers more options for encrypted data and multi-application systems. It is often selected when one card must work with membership, entrance access and lockers. The exact chip and data format must be confirmed before ordering.

Yes, an existing membership card may be used if its frequency, chip type and data format are compatible with the locker lock. For example, a 125 kHz card cannot be read by a lock designed only for 13.56 MHz credentials.

Before bulk production, YonAnn recommends sending one or more membership-card samples for compatibility testing. We will check the card frequency, chip, UID or sector-reading requirements and recommend the correct lock version.

Public mode allows users to choose any available locker temporarily. A user presents an authorized card or wristband to claim and lock an available cabinet. Only the same credential can reopen that locker during the current use. After the user opens and releases it, the locker becomes available for another user.

Public mode is commonly used in gyms, swimming pools, spas, saunas and other shared locker rooms.

Public mode is designed for shared, temporary locker use. Users can select any available locker, and the locker is released after use.

Private mode assigns a specific card or wristband to a specific locker. The same user normally uses the assigned locker repeatedly until the administrator changes the authorization.

Public mode is suitable for gyms and pools with changing visitors, while private mode is better for employees, students, club members or other users who need a permanently assigned locker.

Yes. An authorized master or management card can normally be programmed to open all lockers within a designated project or management group. Different master cards can also be created for separate floors, locker rooms or staff-management zones, depending on the selected system.

For security, master cards should only be issued to authorized personnel and stored under a documented management procedure. The exact master-card configuration should be confirmed before production.

Yes. A lost RFID wristband can be removed or replaced, but the procedure depends on the lock’s operating mode and management system.

For standalone locks, staff can use an authorized management or deletion card to cancel the old credential or reset the affected locker. In a software-managed system, the administrator can invalidate the lost wristband and issue a replacement. For public-mode lockers, staff can open and reset the occupied locker so the lost wristband no longer controls it.

No. Most standalone RFID cabinet locks read cards or wristbands locally and operate on batteries without Wi-Fi, a gateway or a continuous internet connection. This makes them suitable for projects where stable network coverage is unavailable.

Wi-Fi or another network connection is only required if the project needs additional online functions such as centralized status monitoring, remote management or real-time records. These functions require a compatible connected locker-lock system rather than a standard standalone RFID lock.

RFID cabinet locks normally provide a low-battery warning before the batteries are fully discharged. If the warning is ignored, the lock will eventually stop responding to cards or wristbands.

Depending on the model, authorized staff can use an external emergency power interface, emergency battery box, mechanical key or emergency release method to open the locker. After replacing the batteries, the programmed settings are normally retained. The required emergency-opening method should be confirmed when selecting the lock.

Yes, selected RFID locker locks are suitable for humid locker rooms in saunas, spas and swimming pools. For these projects, YonAnn recommends corrosion-resistant finishes, protected electronic components and waterproof silicone RFID wristbands.

However, the lock should not be exposed to direct water spray, continuous condensation or high-temperature steam unless the selected model has a verified protection rating for that environment. The installation location and humidity conditions should be reviewed before ordering.

Yes. YonAnn RFID cabinet locks can be installed on wooden, metal, HPL and plastic locker doors when the correct lock body, latch and mounting method are selected.

Before production, please provide the cabinet material, door thickness, opening direction, door gap, internal structure and available mounting space. Metal doors may affect RFID reading or require a different installation method, so a sample installation test and approved drilling drawing are recommended before bulk installation.

Please provide the following project information:

• Required quantity
• Locker material and door thickness
• Door opening direction and internal structure
• Lock dimensions or installation drawings
• Required RFID frequency and card chip
• Public or private operating mode
• Card, wristband and master-card quantities
• Required color, logo and locker numbering
• Packaging and certification requirements
• Shipping destination and required delivery date

Photos, videos or a physical locker-door sample can help YonAnn confirm installation compatibility before production.

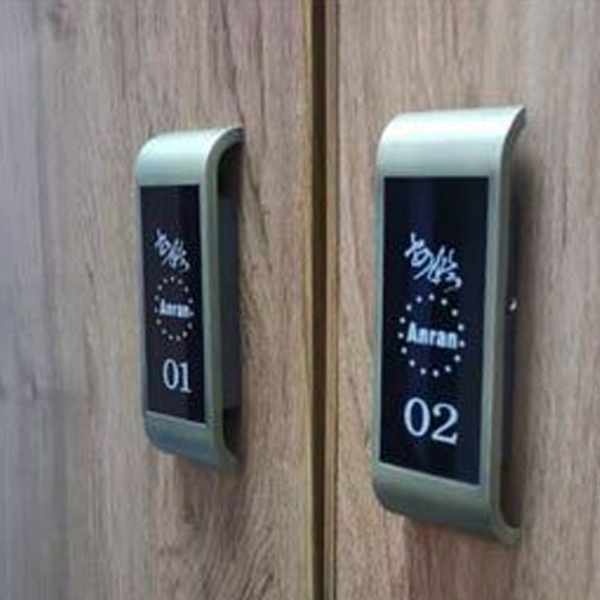

Yes. YonAnn provides OEM and ODM customization for RFID cabinet-lock projects. Available options include lock colors and finishes, laser-engraved or printed logos, sequential locker numbers, customized packaging and project-specific accessories.

RFID wristbands can also be customized with different colors, chip types, printed or engraved numbers and customer branding. Customization availability and MOQ depend on the lock model, wristband design, production process and order quantity. A pre-production sample can be provided for approval.

YonAnn accepts sample orders for product and card-compatibility testing. Standard samples can normally be prepared within 1–3 working days after the model, RFID type and payment are confirmed.

The MOQ for bulk orders depends on the selected lock model and customization requirements. Standard products usually have a lower MOQ, while customized colors, logos, packaging and molded wristbands may have separate minimum quantities. Please send the required model, quantity and customization details for an exact MOQ and delivery schedule.

Choose RFID locks for gyms, spas, saunas and pools where users need fast access with cards or waterproof wristbands. RFID is especially suitable for high-frequency use and shared public lockers.

Choose password locks when users should access lockers without carrying a physical credential. They are suitable for small private lockers and temporary storage.

Choose Bluetooth locks when app-based access, electronic keys or more flexible user management is required. Bluetooth systems provide more management options but may require a smartphone, app onboarding and an optional gateway for remote functions.
