Popular Model New Model Hotel Card Lock Supplier Model: B028
Our these classic hotel lock system adopt European designer , simple but smooth
- Waterproof , dustproof and anti glare .
- Each step will have light notice . when read right room door open will blue light flash and music notice to open . Read wrong card , will have red light and beep sound to notice wrong card reading .
- The hotel digital door lock software have English ,Spanish version .
- We offer SDK free to interate with hotel management door lock
- Datasheet

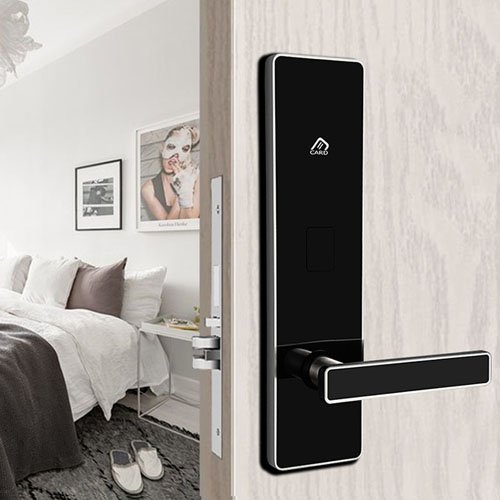

- Install On Door Show
- Product Details
| Model | B028 |
| Colors | Gold, Silver,Black |
| Material | Stainless Steel |
| Voltage | 4 pcs AA Alkaline Battery |
| Card Chip | T5577/Mifare /ID |
| Door Thickness Requirement | 38mm – 65mm |
| Working Temperature | -20℃ – 65℃ |
| Brand Name | OEM |
| Warranty | 2 years |
| HS code | 8301400000 |
Popular Model New Model Hotel Card Lock Supplier Related Products
Popular Model New Model Hotel Card Lock Supplier
Features
Management software with complete function in a custom-friendly way
The lock system will exist automatically within 15 seconds if didn’t operate
We have two access solution : Atmel T5577 card , mechanical lock
Anti-tampering alarm , low voltage alarm
Anti-tamper trim handle with free moving clutch mechanism
Handle retract deadbolt and latch from inside
High speed proximity reader recognize cards in less than 0.25S
Red light and blue light display every lock , when red light flash , it read wrong room card ,
The right card read blue light will flash with music notice
Technical Data
Model Number : B028
Working voltage : 6.0V
Alarm voltage : 4.8V
Static current : < 30uA
Dynamic current : <150mA
Working humidity : 20% – 90% RH
Power support : 4 PCS AA alkaline battery (100000 times under normal working )
Card type support : Mifare 1K / T5577 / TK4100
Lock face panel size : 310mm *76mm * 12mm
Lock latch and bolt material : Zinc alloy
Material of lock case : steel
Range of door thickness : 38mm – 70mm , more thickness door need custom made the lock
